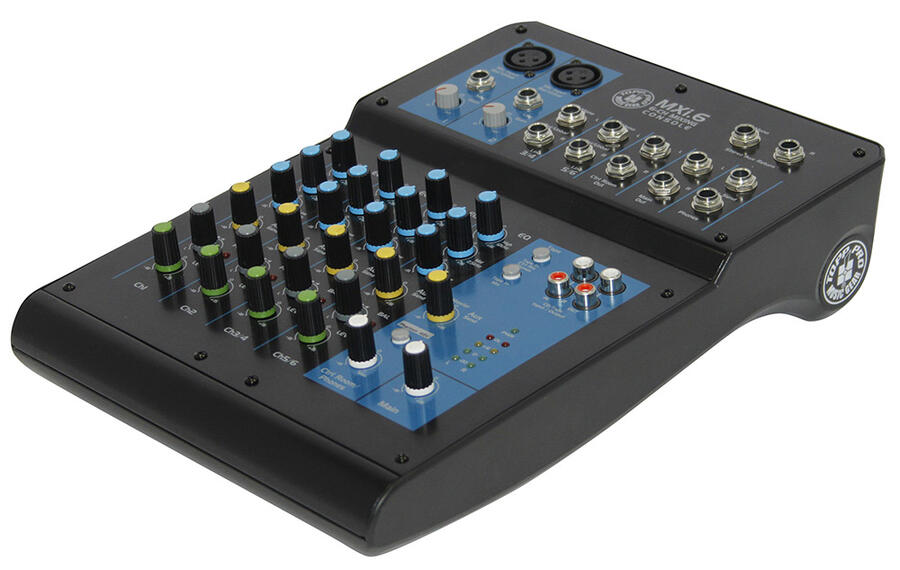

Model | MXi.6 / MXi.6USB |
Frequency Response | Mic Input to any Output (Trim at 0 dB) | +0, -1 dB | 10 Hz to 150 kHz | -3 dB | 10 Hz to 200 kHz |
|
Distortion | THD and SMPTE IMD | 20 Hz to 20 kHz | Mic Input to Main Output | <0.005% @+4 dBu output |
|
Noise | 20 Hz to 20 kHz BW (150 Ohm source impedance) | Equivalent Input Noise (EIN) | -129 dBu | Residual Output Noise | Main, Ctrl Room, Phones | -106 dBu |
|
CMRR | Mic In | 60 dB@1 kHz, Gain@ maximum |
|
Crosstalk | Adjacent Inputs or Input to Output | -90 dB@1 kHz | Input Gain Conrol Range | 0 dB to 50 dB | Phantom Power | +48 VDC |
|
Equalization | High | +/-15 dB@12 kHz | Mid (except for MX.5) | +/-12 dB@2.5 kHz | Low | +/-15 dB@80 Hz |
|
Mixer Rated Output | Main, Aux, Control Room | +4 dBu | Maximum Rated Output | +22 dBu |
|
Maximum Input Levels | Mic Input | +12 dBu, Gain @+10 dB | Line Input | +30 dBu, Gain @+10 dB | Tape Input and Aux Return | +22 dBu |
|
Input Impedance | Mic Input | 2.6 kOhm , balanced | Line Input | 20 kOhm , balanced | Stereo Aux Returns | 20 kOhm , balanced | CD/Tape In | 24 kOhm , unbalanced |
|
Output Impedance | Main | 240 Ohm , balanced; 120 Ohm, unbalanced | Ctrl Room, Aux Sends | 120 Ohm | Tape Output | 1 kOhm | Phones Output | 25 Ohm |
|
VU Meters | Main Left and Right (4-segment) | Clip (+18), +6, 0, -20 (0 LED=0 dBu) |
|
AC Power Requirements | External Power Supply Output | 18.5 VAC 2@150 mA (3-pin AC power connection) | External Power Supply AC Input | U.S. | 120 VAC, 60 Hz | Europe | 240 VAC, 50 Hz | Japan | 100 VAC, 50/60 Hz | Korea | 220 VAC, 60 Hz |
|
Physical | Dimensions (H x W x D) | MX.5 | 41 x 133 x 203 mm (1.6" x 5.2" x 8.0") | MX.6 | 203 x 133 x 41 mm (8.0" x 5.2" x 1.6") | MX.10 | 41 x 188 x 252 mm (1.6" x 7.4" x 9.9") | MX.12 | 41 x 272 x 259 mm (1.6" x 10.7" x 10.2") | Net Weight | MX.5/MX.6 | 0.7 Kg (1.6 lb)/1.2 Kg (2.7 lb) | MX.10/MX.12 | 1.4 Kg (3.1 lb)/1.8 Kg (3.9 lb) |
|
