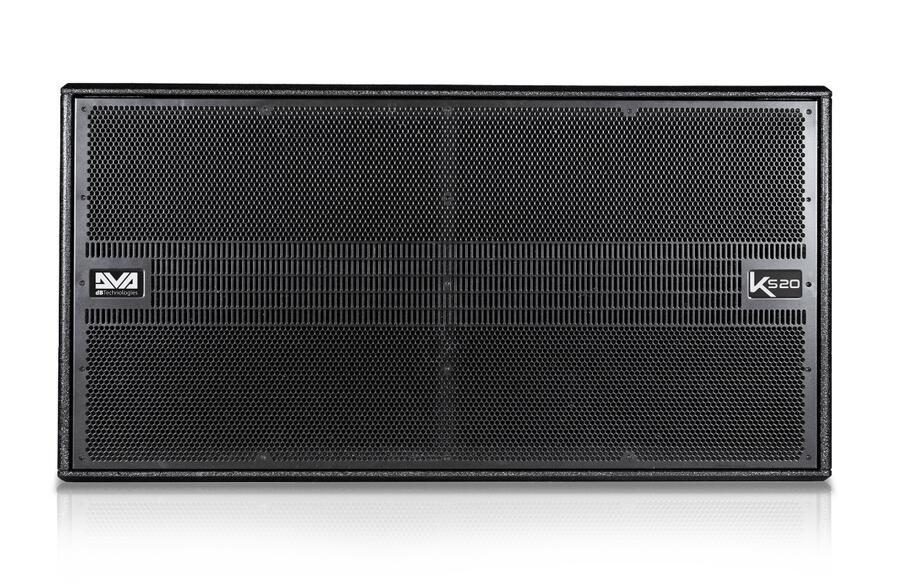

Equipaggiato con doppio woofer da 18" alloggiati in un case bass reflex, DVA KS20 è amplificato da 2 moduli amplificatori Digipro G3. Il design interno combina i vantaggi dell bass reflex e del caricamento a tromba in un box robusto e resistente.
DVA KS20 rappresenta il completamento ideale per i sistemi line array DVA K5 più estesi, e può essere utilizzato anche verticalmente per configurazioni stacked.
Dati tecnici
Speaker Type
Active Bassreflex-Horn loaded Subwoofer
Dati acustici
Frequency Response [- 10 dB]
41 Hz - 120 Hz
Max SPL
138 dB
Directivity
Omnidirectional
LF
2x18 "
Voice Coil LF
4 "
Amplificatore
Amp Technology
Digipro® G3
Amp Class
Class D
RMS Power
1800 W
Peak Power
3600 W
Cooling
Convection
Power Supply
1800 W SMPS with auto range PSU
Processore
Controller
DSP 56 Bit
AD/DA Converter
24 Bit /48 Hz
System Presets
X-Over, Delay
Limiter
Dual Active Multiband RMS, Peak, Thermal
Crossover Frequency LF-HF
90, 120 Hz (selectable)
Slope LF-HF
24 dB/Octave
Input Section
Input Selection
2x XLR Balanced
Output Selection
2x XLR Balanced
Power Socket
1x PowerCON in + 1x PowerCON Out
Controls
1 x Input Sensitivity Rotary Switch
1 x Setup Rotary Encoder (delay up to 4.5 ms on-board)
1 x Polarity Inversion Switch
1 x X-over Frequency Switch (90 Hz, 120 Hz)
1 x Output mode Switch (Link- X-Over)
1 x Setup Rotary Encoder (delay up to 4.5 ms on-board)
1 x Polarity Inversion Switch
1 x X-over Frequency Switch (90 Hz, 120 Hz)
1 x Output mode Switch (Link- X-Over)
Meccanica
Housing
Plywood
Handles
3x Per Side
Rigging Points
2xPick Points on top to fix
DRK10/20 rigging frames
DRK10/20 rigging frames
Pole Mount
1 xM20 on top
Width
1100 mm (43.31 in)
Height
580 mm (22.83 in)
Depth
720 mm (28.53 in)
Weight
84 kg (185.19 lbs)
